Parameter
●Water Pressure-----------------------------0.15-0.6MPa
●Water Temperature-----------------------------------------5℃-45℃
●Transformer Output-------------------------------------------DC12V、1.5A
●Water Turbidity-----------------------------------------------Down-flow regeneration＜5FTU
●Inlet/Outlet-----------------------------------------------------1″M
●Drain------------------------------------------------------------1/2″M
●Brine Line Connector---------------------------------------3/8″M
●Base-------------------------------------------------------------2.5″-8NPSM
●Riser Pipe------------------------------------------------------1.05 ″OD
●Max Flow Rate-------------------------------------------------4 m3/h
●Suitable Tank Size (in)--------------------------------------- 6″～18″
Feature
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water pass the valve of single tank type in regeneration

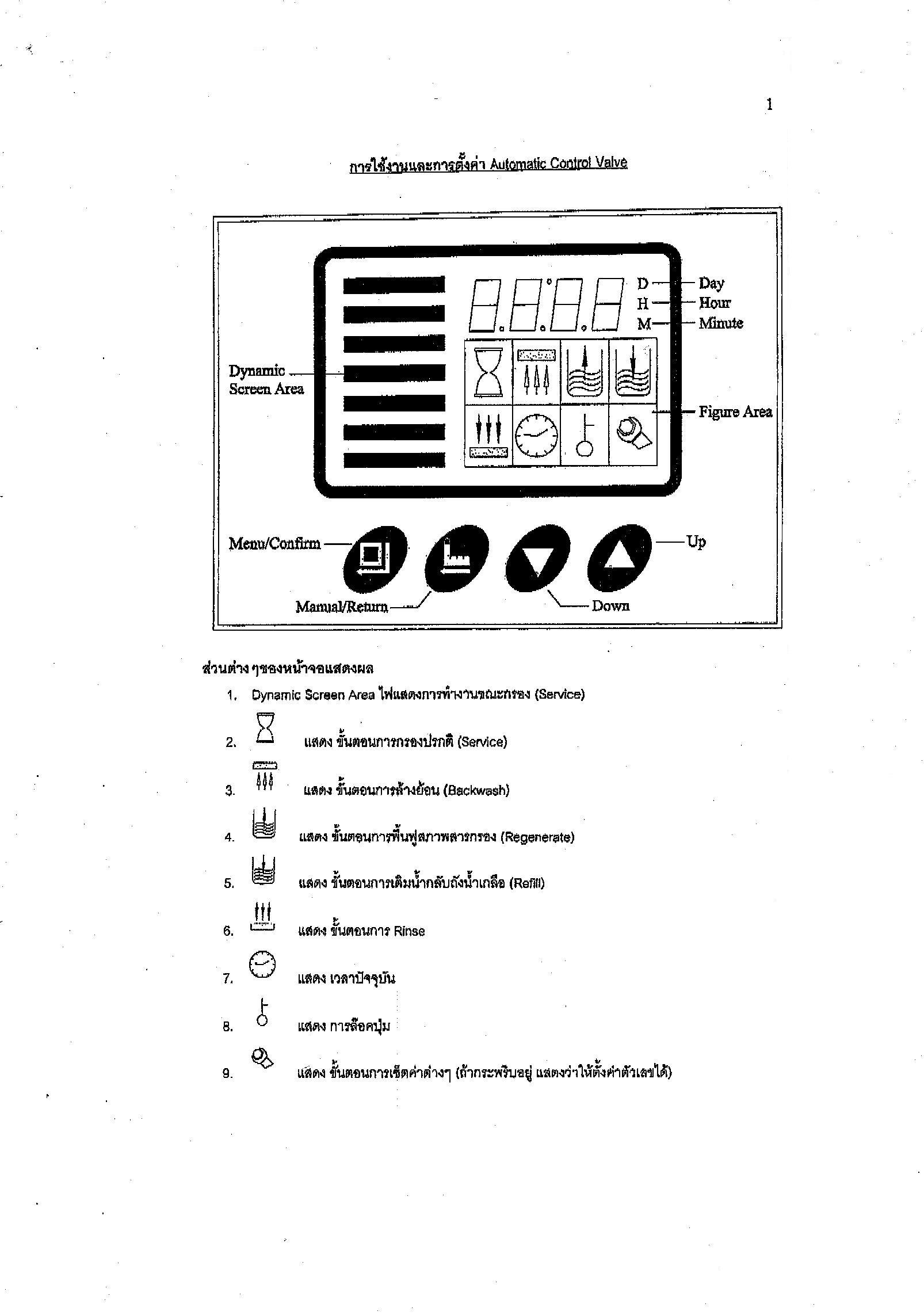

■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in regeneration cycle.
■Having long outage indicator
■It can choose time clock type or meter type by program selection
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Application
Residential filtration system
Ion exchange equipment
Boiler softening water system
RO pretreatment softening system, etc
